Our Image Sensors
| Part Number | Image | Resolution | FPS | GS Pixel | uPGA | Notes |
|---|---|---|---|---|---|---|

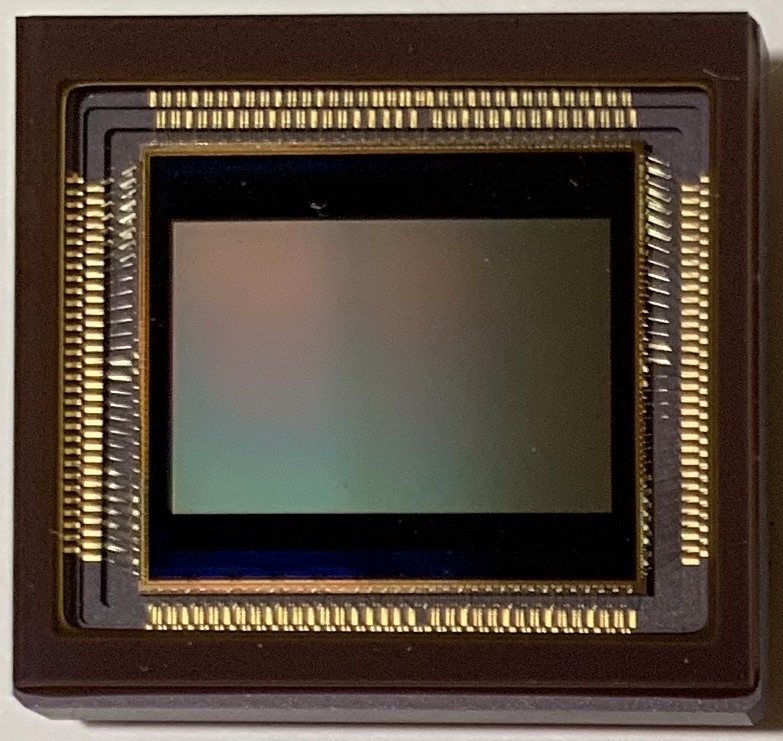

| LUX13HS |  |
1280x864 | 3750 | 13.67um | 345uPGA | |

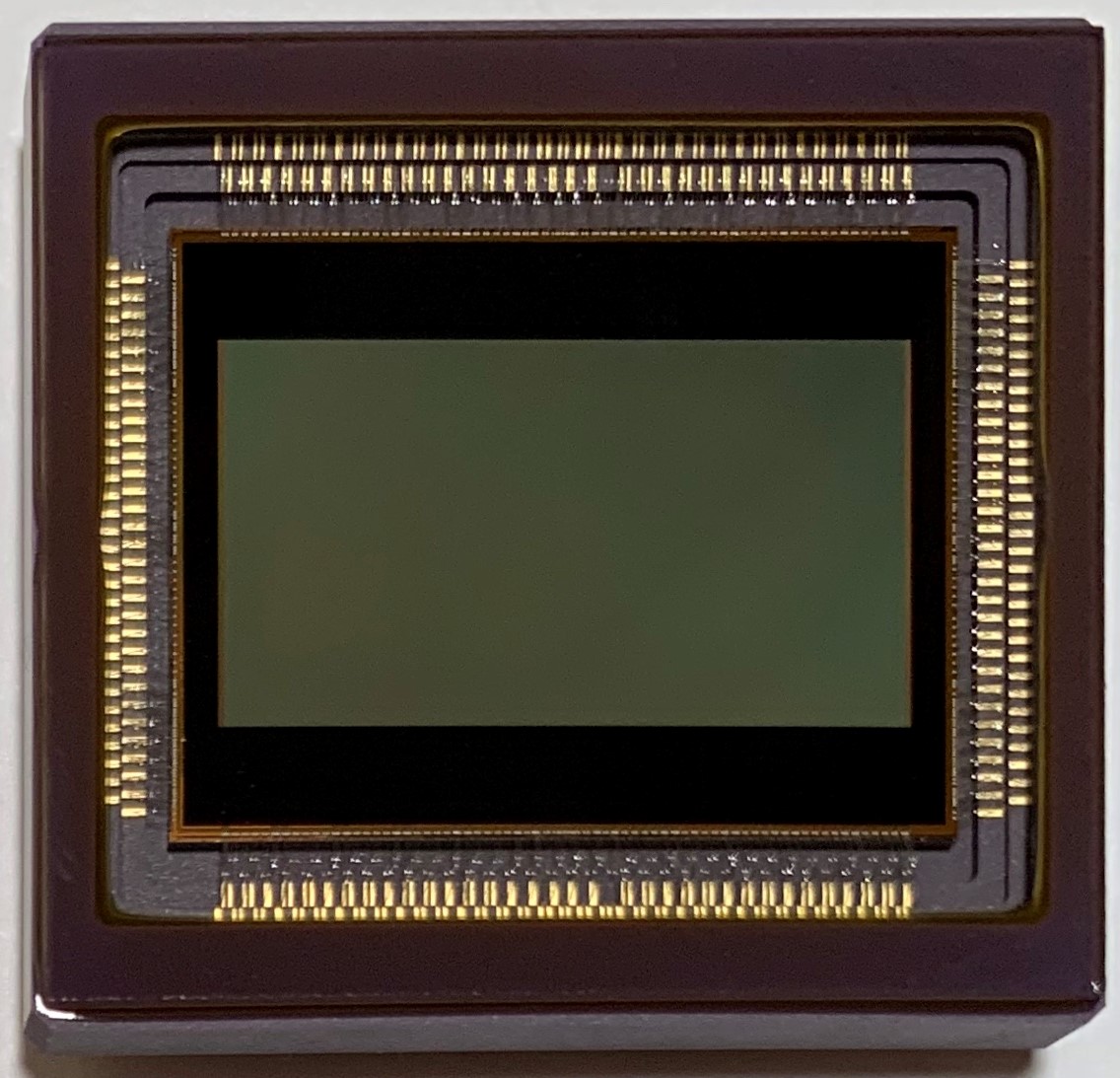

| LUX19HS |  |
1920x1080 FHD | 2500 | 10um | 345uPGA | |

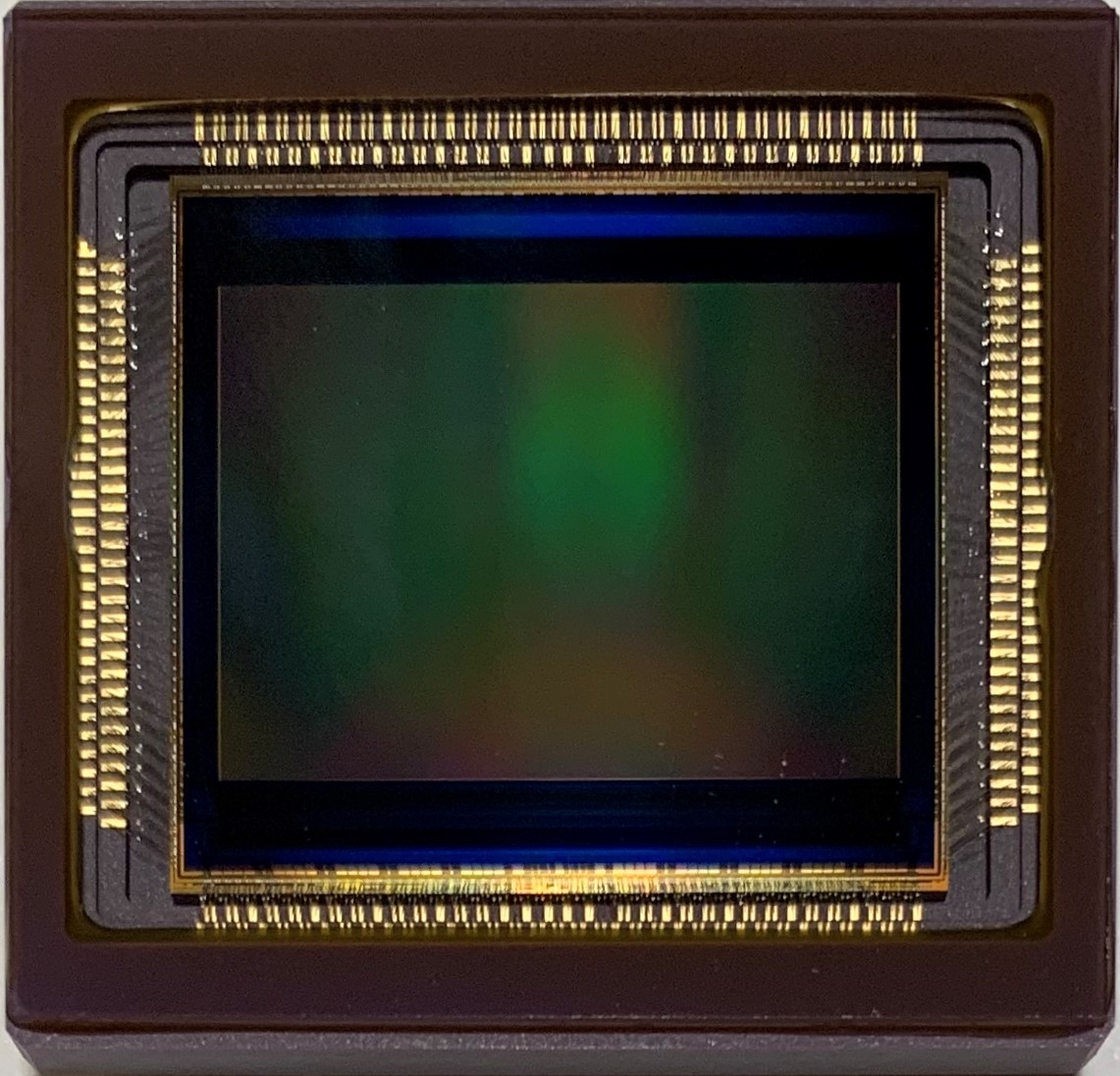

| LUX160 |  |
4704x3412 16MP | 300 | 3.5um | 345uPGA | |

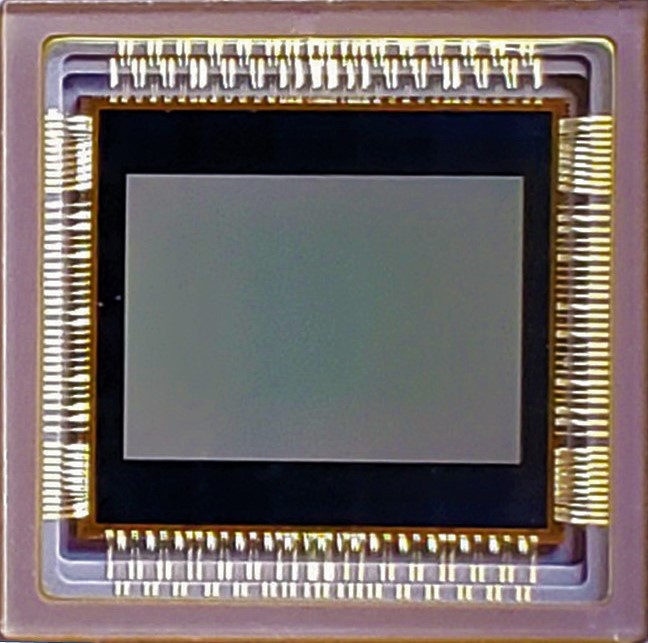

| LUX51 |  |
2560x1920 | 700 | 5um | 208uPGA | * Brand New |

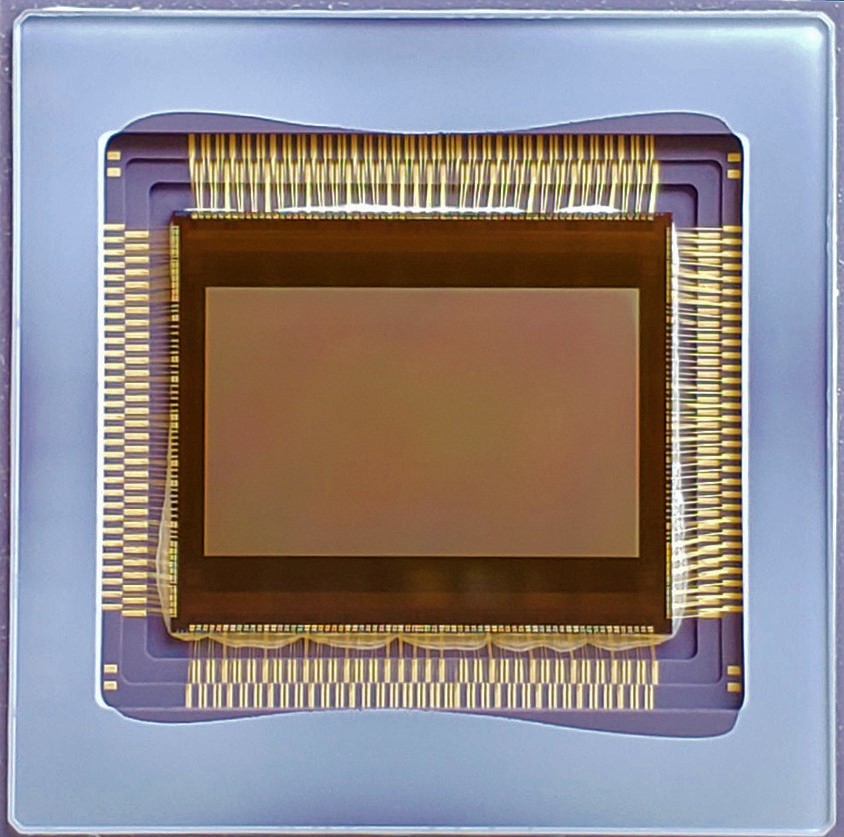

| LUX42 |  |
2560x1600 | 1000 | 7um | 361uPGA | * Limited Availability |

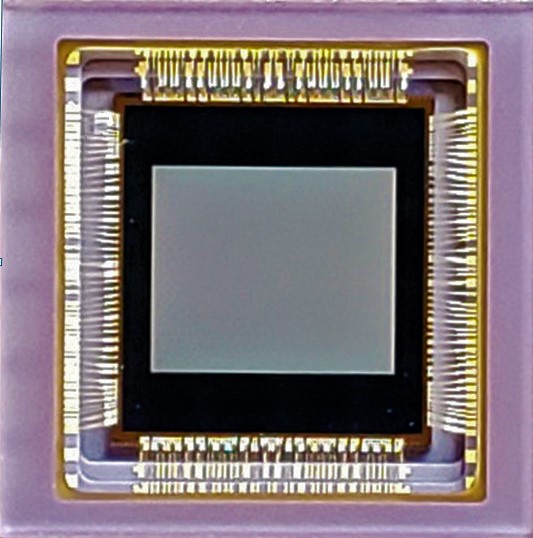

| LUX1020 |  |
1024x896 | 3000 | 7.8um | 216LGA | * Only High Volume |

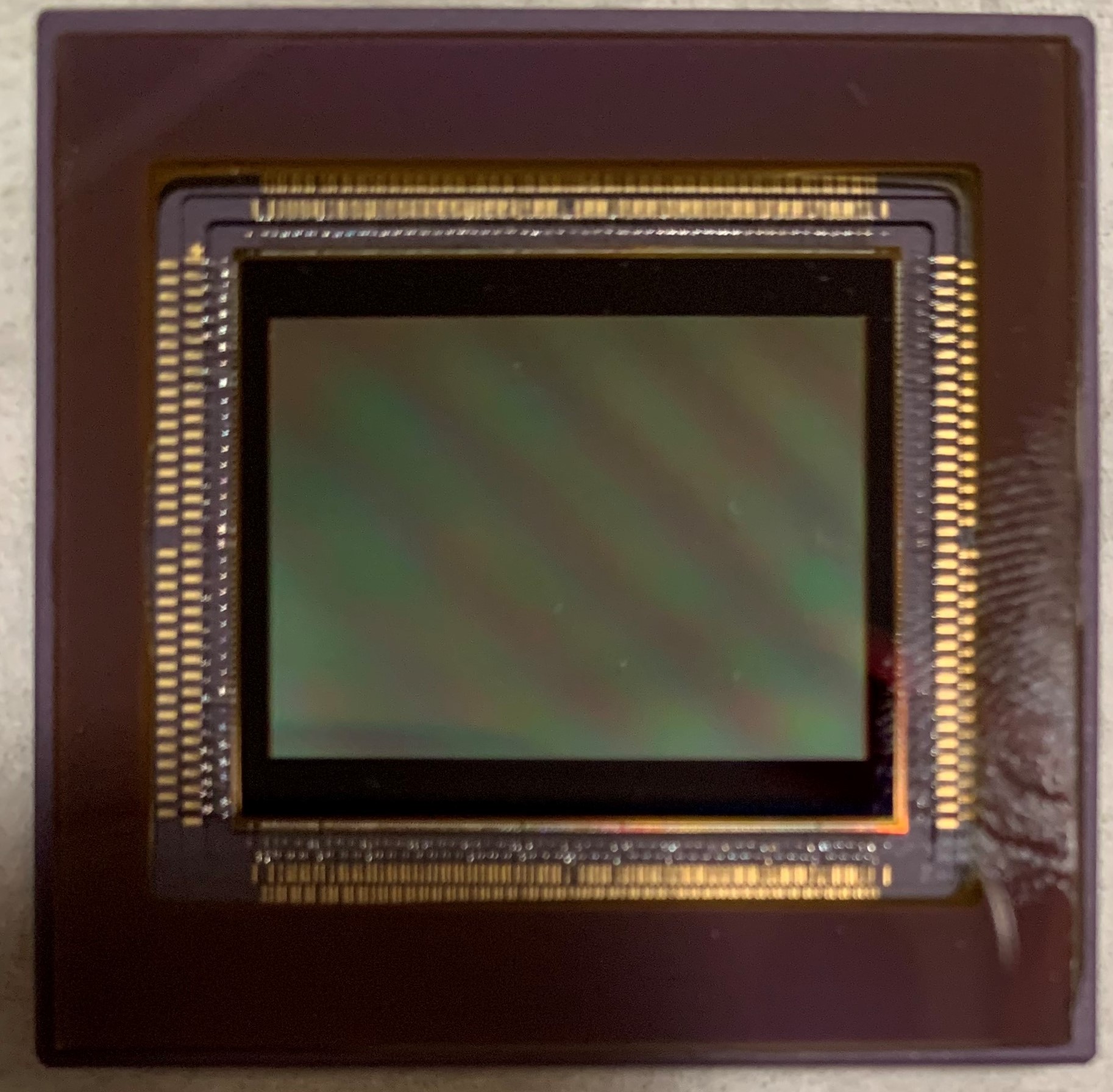

| AM5X3 |  |
2560x1920 | 2200+ | 7.8um | 478uPGA | |

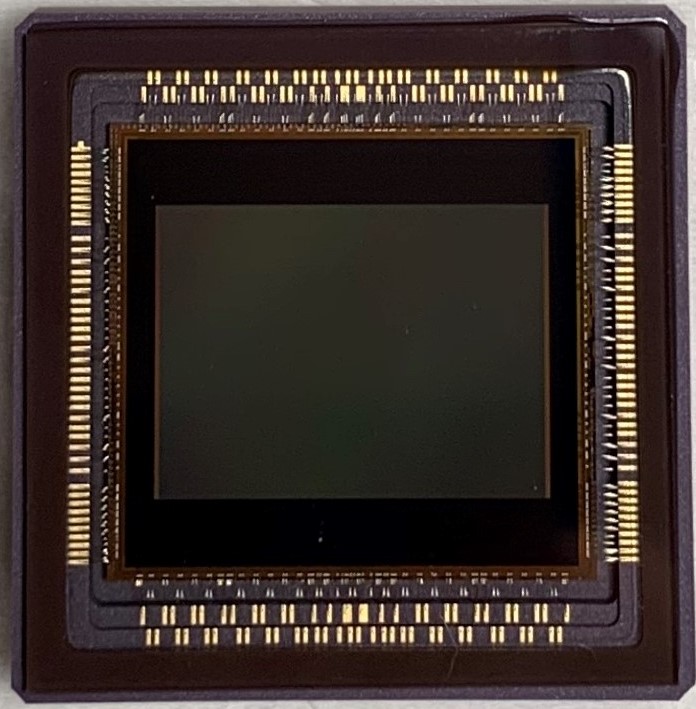

| AM1X12 |  |
1280x960 | 10000+ | 15.6um | 478uPGA | * Limited Availability |

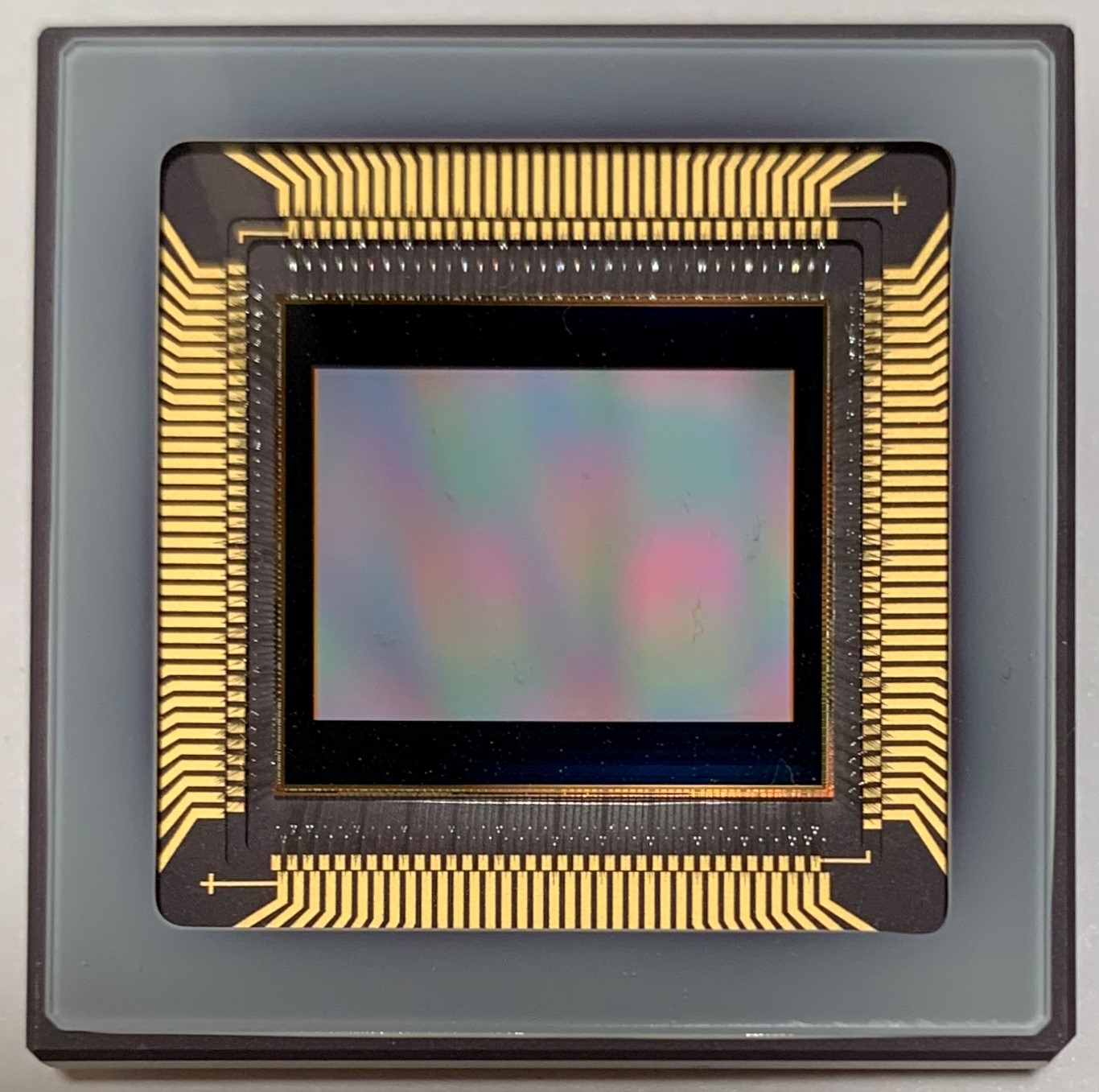

| AM41 |  |
2352x1728 | 500FPS | 7um | 281uPGA | * 10 years old; non-LVDS |
